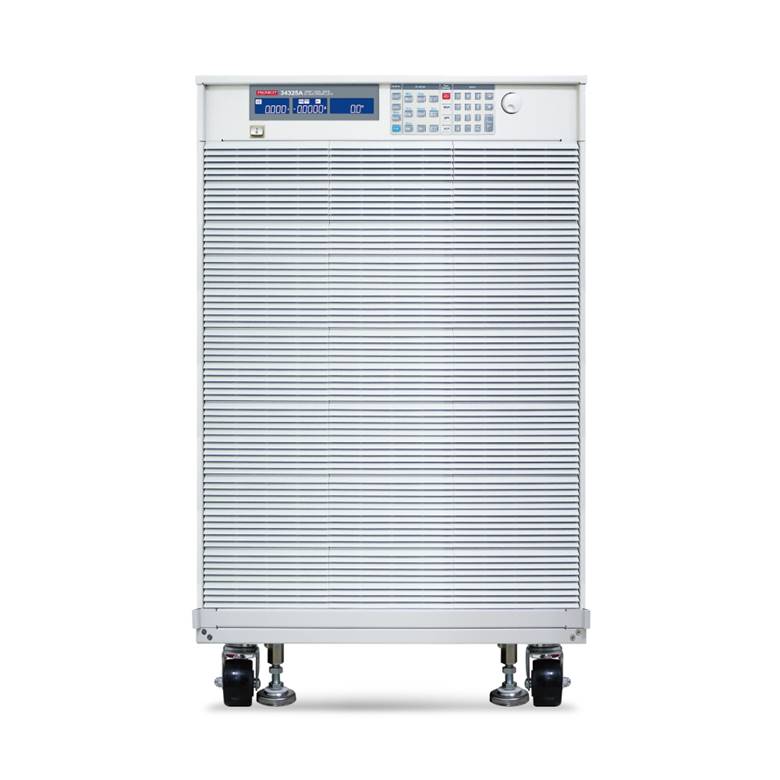

34325A Compact High Power DC Electronic Load 1000V,250A,25KW



Description



l   34000A Series has its own control and display panel, CC / CR / CV / CP / Dynamic modes, 150 sets Store / Recall memory which provides load set-up more efficiently, also can be remote controlled via GPIB¡BRS232¡BUSB and LAN interface.

l   SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.

l   Dynamic can be simulated under CC, CP mode. The current Rise / Fall slew rate can be adjusted individually and there is an external signal input for a Arbitrary Waveform to simulate load current.

l   Single key for OCP¡BOPP test function will be more efficiency and accuracy on OCP¡BOPP testing.

l   Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display ¡¨ +  ¡§ or ¡§ ¡V ¡§ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

l   150 sets test parameter and status storage function, user can recall the storage memory real time in accordance with the auto sequence requirement.

l   Maximum Voltage up to 1000V provide an idea testing solution for Power Factor Correction test.

l   Master / Slave control units maximum up to 1 MASTER, 7 SLAVE.



Features



l   With parallel function maximum power up to 320KW.

l   Maximum up to 8 units master / slave parallel control.

l   5 digit V/A/W Meter.

l   High-speed measurement and communication transmission.

l   Large LCD Display¡Bsetting values can be adjusted by rotary knob or push button.

l   Voltage¡BCurrent and Watt value can be displayed simultaneously.

l   Capable for Power Factor Correction (PFC) Test. (for 600V,1000V models)

l   OCP¡BOPP test function automatically.

l   Power ON status can be set.

l   CC, CR, CV, CP , CC+CV  , CP+CV , Dynamic and Short operation mode.

l   SHORT time setting.

l   Protections against I,W,¢XC and over-voltage alert.

l   Voltage meter display the polarity positive¡]¡¨¡Ï¡¨¡^or negative¡]¡¨¡Ð¡¨¡^is selectable.

l   Optional Interface : GPIB¡BRS232¡BUSB¡BLAN.

l   Support MPPT CC¡BCR¡BCV test function for solar panel

l   0.7V @ 1000A is on Static condition, and the starting voltage must be greater than 5V, if on Dynamic condition that is 5V @ 1000A

l   New waveform generator plug in model 9923 adds user programmable battery discharge current waveform simulation to Prodigit DC Loads.

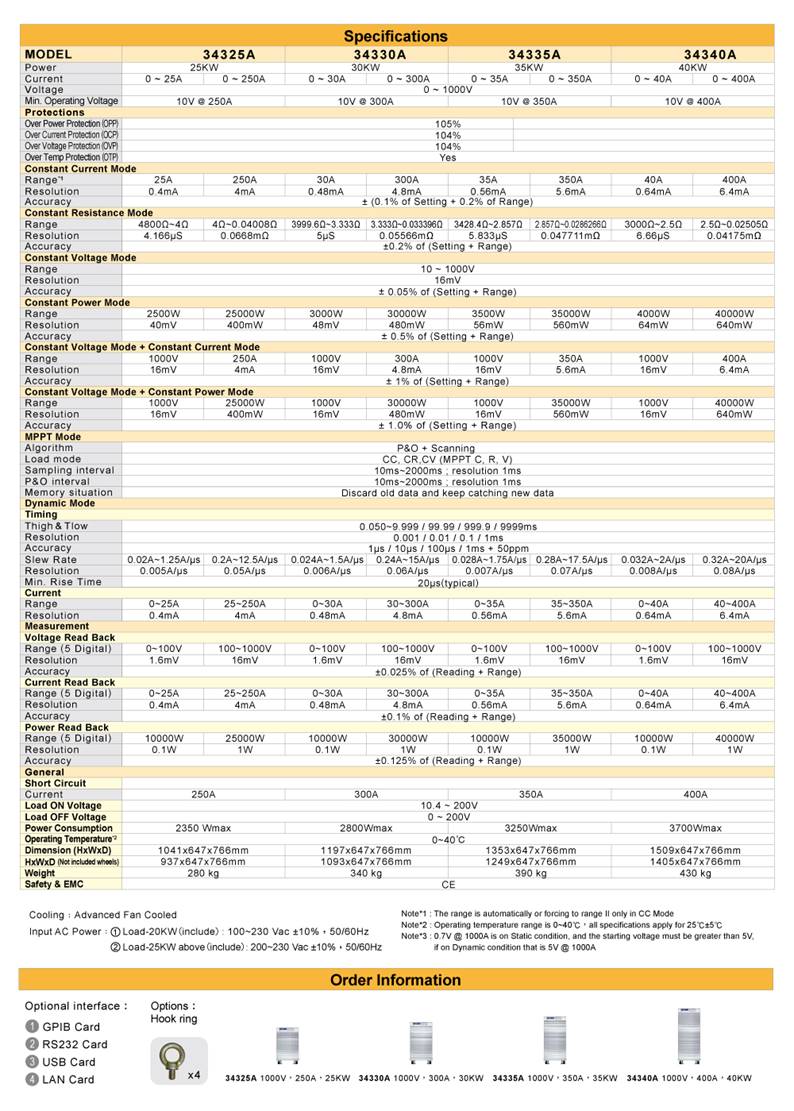

Specifications
